RCD T3000

Premium-RCD-T3000

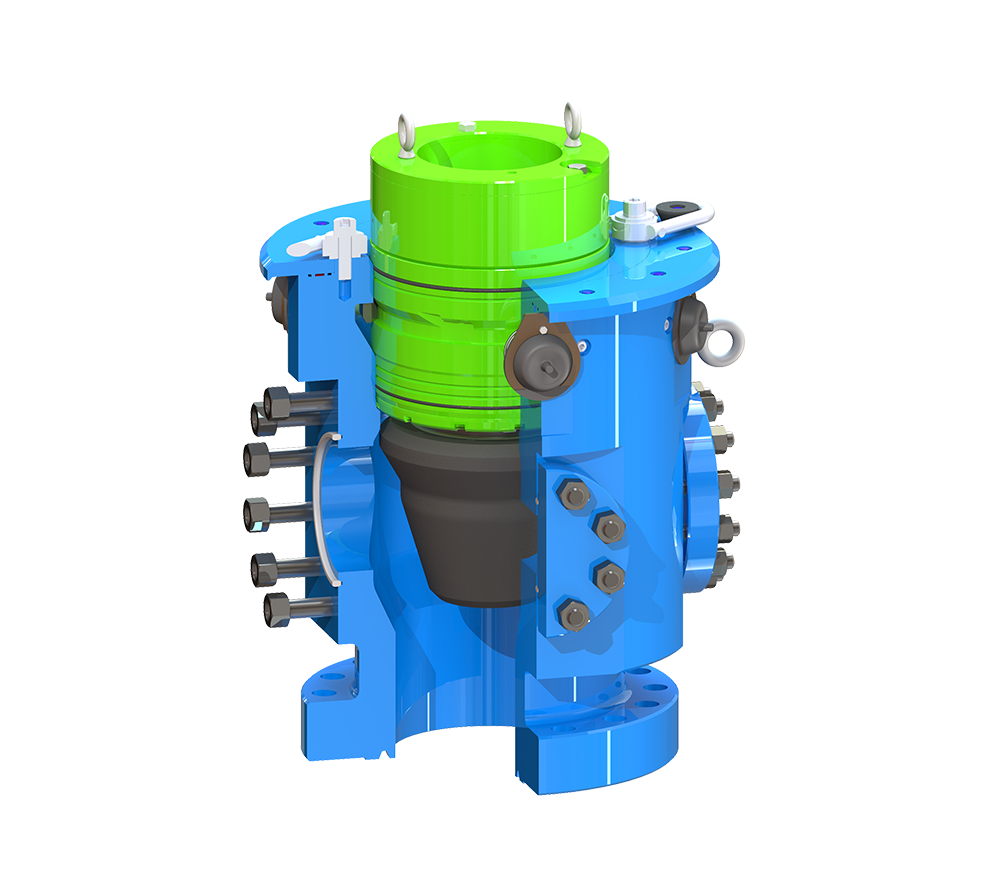

Premium RCD T3000

Premium-RCD-T3000b

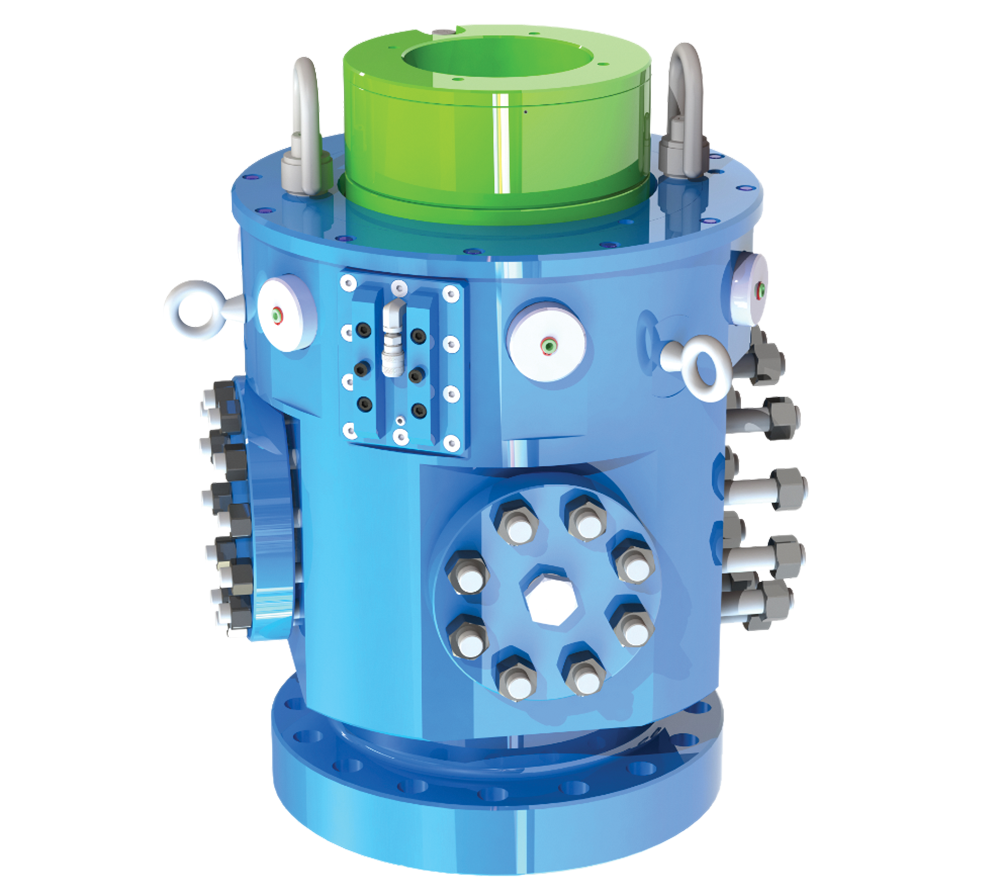

Premium RCD T3000b

    Premium Oilfield Technologies

    The revolutionary Premium RCD T3000 features a 100% integrated bearing lubrication and hydraulic latching system.

    RCD Valve Brochure
    • Low profile dimensions – 43" OAH w/ bearing assembly, 36" w/ stripping assembly
    • Fail safe closed - hydraulic latch (No HPU Req.)
    • Self-lubricated bearing – integrated reservoir
    • Bottom flange - 13-5/8" 5K or 11" 5K
    • Outlet flanges – (2) 4-1/16" 5K, 7-1/16" 3K, 9" 3K
    • 3000 static psi / 1800 dynamic psi
    • 220 rpm max
    • Single element sealing elements – nitrile, polyurethane – slip on style
    • Dimensions
      Low profile – 43" OAL with bearing assembly
    • Pressure Rating
      3000 psi static, 1800 psi dynamic
    • RPM Rating
      220 rpm max
    • Bearing Lubrication
      Self-lubricated bearing – integrated reservoir
    • Latching Mechanism
      Fail safe closed – hydraulic latch (no HPU required)
    • Bottom Flange
      13-5/8" 5K or 11" 5K
    • Outlet Flanges
      (2) 4-1/16" 5K, 7-1/16" 3K, 9" 3K
    • Sealing Elements
      Single or dual elements – nitrile, polyurethane – slip on style
